Internal resistance |
 |
|

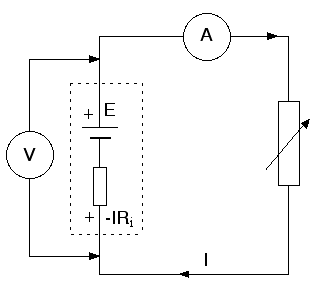

The power supply on the left is a source of voltage (E) and has an internal resistance Ri. As the resistance on the right is reduced the current rises. The voltage V measured across the power supply is not E but (E-IRi) because of the voltage drop IRi across the internal resistance. |
