Internal resistance (2)

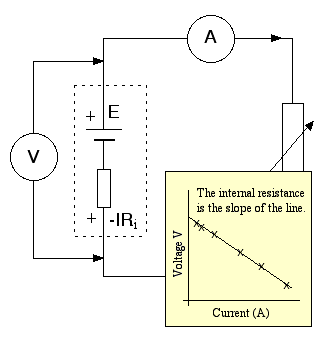

As the current rises the voltage drop across Ri increases and the measured voltage falls. The negative slope of the line is the internal resistance (constant in this case). As a dry cell ages the internal resistance increases and less current can be drawn.
