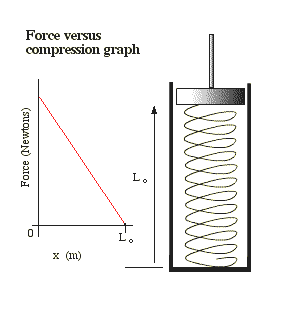

The spring is fully extended |
![]() |
| The cylinder has a loosely fitting piston. Forcing the piston down against the upwards force exerted by the spring requires work. The work done is stored as elastic potential energy in the spring. There is no heat involved in the transaction if the spring is elastic. |
